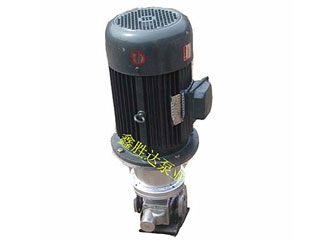

立式不锈钢圆弧齿轮泵采用双圆弧正弦曲线齿形，它与普通齿轮泵的渐开线齿轮相比， 突出的优点是齿轮啮合过程中齿廓没有相对滑移，齿面磨损，而且无困油现象，因此本泵具有运转平稳，噪音低，寿命长，等特点。
立式不锈钢圆弧齿轮泵主要用于石油、化工、钢铁、冶金、矿业、电站、环保等行业的压缩机、冷冻机、船舶等大型机械设备的强制润滑和各种机械设备中的稀油站系统长期连续工作场合。
应用范围：环境温度 高为50℃，使用温度 高为80℃。
|
型号 |
流量
Q |
转速
n r/min |
排出压力
p Mpa |
汽
蚀余量 r m |
效率
η % |
电动机
|
||
|
m3/h
|
频率
Hz |
功率KW
|
型号 |
|||||
|
YCB0.6-0.6
|
0.6
|
910
|
0.6
|
5.5
|
32
|
50
|
0.75
|
Y90S-6
|
|
1.0 |
1390 |
50
|
0.75
|
Y80L2-4
|
||||
|
0.7
|
1130
|
60
|
0.75
|
Y90S-6
|
||||
|
1.2 |
1710
|
60
|
0.75
|
Y80L2-4
|
||||
|
YCB0.6-1.6
|
0.6
|
910
|
1.6
|
7.0
|
70
|
50
|
1.1
|
Y90L-6
|
|
1.0
|
1400
|
50
|
1.5
|
Y90L-4
|
||||
|
0.7
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
1.2
|
1710
|
60
|
1.1
|
Y90S-4
|
||||
|
YCB1.6-0.6
|
1.6
|
910
|
0.6
|
5.5
|
42
|
50
|
0.75
|
Y90S-6
|
|
2.5
|
1400
|
50
|
1.1
|
Y90S-4
|
||||
|
1.9
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
3.0
|
1710
|
60
|
1.5
|
Y90L-4
|
||||
|
YCB1.6-1.6
|
1.6
|
940
|
1.6
|
7.0
|
71
|
50
|
2.2
|
Y112M-6
|
|
2.5
|
1440
|
50
|
4 |
Y112M-4
|
||||
|
1.9
|
1150
|
60 |
2.2
|
Y112M-6 |
||||
|
3.0
|
1750
|
60
|
4
|
Y112M-4 |
||||
|
YCB3.3-0.6
|
3.3
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
5.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.0
|
1150
|
60
|
1.5
|
Y100L-6
|
||||
|
6.0
|
1730
|
60
|
2.2
|
Y100L1-4
|
||||
|
YCB3.3-1.6
|
3.3
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
5.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.0
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
6.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
YCB4-0.6
|
4.0
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
6.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.8
|
1150
|
60
|
2.2 |
Y112M-6
|
||||
|
7.2
|
1730
|
60
|
3
|
Y100L2-4 |
||||
|
YCB4-1.6
|
4.0
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
6.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.8
|
1170
|
60
|
5.5
|
Y132M-6 |
||||
|
7.2
|
1750
|
60
|
7.5
|
Y132M-4 |
||||
|
YCB8-0.6
|
8.0
|
960
|
0.6
|
5.0
|
61
|
50
|
3
|
Y132S-6
|
|
12.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
9.6
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
14.4
|
1750
|
60
|
5.5
|
Y132S-4
|
||||
|
YCB8-1.6
|
8.0
|
970
|
1.6
|
7.0
|
75
|
50
|
11
|
Y160L-6
|
|
12.0
|
1460
|
50
|
15
|
Y160L-4
|
||||
|
9.6
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
14.4
|
1760
|
60
|
15
|
Y160L-4
|
||||
|
YCB10-0.6
|
10.0
|
960
|
0.6
|
5.0
|
62
|
50
|
4
|
Y132M1-6
|
|
15.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
12.0
|
1170
|
60
|
5.5
|
Y132M2-6
|
||||
|
18.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
YCB10-1.6
|
10.0
|
970
|
1.6
|
7.0
|
76
|
50
|
11
|
Y160L-6
|
|
15.0
|
1470
|
50
|
15
|
Y160L-4
|
||||
|
12.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
18.0
|
1770
|
60
|
18.5
|
Y160L-4
|
||||
|
YCB20-0.6
|
20.0
|
970
|
0.6
|
5.0
|
68
|
50
|
7.5
|
Y160M-6
|
|
24.0
|
1170
|
60
|
7.5
|
Y160M-6
|
||||
|
YCB25-0.6
|
25.0
|
970
|
0.6
|
5.5
|
69
|
50
|
11
|
Y160L-6
|
|
30.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
YCB30-0.6
|
30.0
|
970
|
0.6
|
5.5
|
70
|
50
|
11
|
Y160L-6
|
|
36.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
YCB40-0.6
|
40.0
|
970
|
0.6
|
5.5
|
72
|
50
|
15
|
Y180L-6
|
|
48.0
|
1180
|
60
|
15
|
Y180L-6
|
||||
|
YCB50-0.6
|
50.0
|
970
|
0.6
|
5.5
|
72
|
50
|
22
|
Y200L2-6
|
|
60.0
|
1180
|
60
|
22
|
Y200L2-6
|
||||
